Rubber expansion joints are essential components in piping systems, used for vibration absorption, noise reduction, and misalignment compensation. While many users focus on the outer rubber material, the internal reinforcement layer—cord fabric—plays a decisive role in ensuring pressure resistance and durability. Among various reinforcement materials, cord fabric stands out due to its superior structural strength and stability.
What Is Cord Fabric and Why Is It Critical for Rubber Expansion Joints?
Cord fabric is a specialized industrial textile used to reinforce rubber products. Originally developed for tire manufacturing, it features a tightly woven warp (cords) and loosely spaced weft, resembling a curtain—hence the name “cord fabric.”

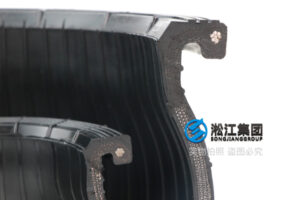

The warp yarns (also called tire cords) bear the primary load, while the weft yarns help maintain the cord structure. In rubber expansion joints, cord fabric functions just like rebar in concrete, providing internal structural support that enables the rubber body to withstand high pressure, impact loads, and vibration without deforming or bursting.
Why Do We Use Cord Fabric in Rubber Expansion Joints?
At Shanghai Songjiang Shock Absorber Group Co., Ltd., we use high-strength imported cord fabric in the manufacturing of our rubber joints to deliver superior product performance. Key benefits include:
-
High Strength and Modulus: Ensures the joint can handle high pressure and tensile forces.
-
Excellent Fatigue and Heat Resistance: Allows for long-term use under dynamic and high-temperature conditions.
-
Stable Structure: Prevents expansion or distortion during operation.
-
Strong Adhesion to Rubber: Cord fabric is treated to bond tightly with rubber, enhancing overall joint integrity.
Common Types of Cord Yarns and Their Characteristics
Cord fabric is made from various types of yarns, each offering different mechanical and thermal properties. Here’s a comparison of commonly used types:
| Type of Cord Yarn | Key Features and Applications |
|---|---|
| Cotton Cord Yarn | Low strength, generates heat from friction, mostly obsolete |
| Rayon Cord Yarn | Good fatigue and heat resistance, but absorbs moisture easily |
| Nylon (Polyamide) Cord | High strength, impact and fatigue resistance, but prone to shrinkage |
| Steel Wire Cord | Very strong, impact-resistant, low rolling resistance, but rigid |
| Polyester Cord Yarn | Cost-effective, used in standard applications |
| Aramid Cord Yarn | High strength and modulus, heat-resistant, ideal for heavy-duty use |
| Carbon Fiber Cord Yarn | Lightweight, high strength, heat-resistant, excellent future potential |
| PEN Cord Yarn | Newer material, good balance of strength and durability |
Summary: Cord Fabric Determines the Performance Limit of Rubber Joints
While many users pay attention to the appearance or brand of a rubber joint, they often overlook the internal cord fabric layer, which is critical for pressure resistance and service life. In fact, the quality of the cord fabric directly affects the joint’s stability, durability, and performance under extreme conditions.
As a professional manufacturer of vibration control products, Shanghai Songjiang Shock Absorber Group Co., Ltd. insists on using premium cord fabric to ensure every rubber expansion joint meets high-pressure and long-life expectations.
